Functional Fiber : Graphene Fiber

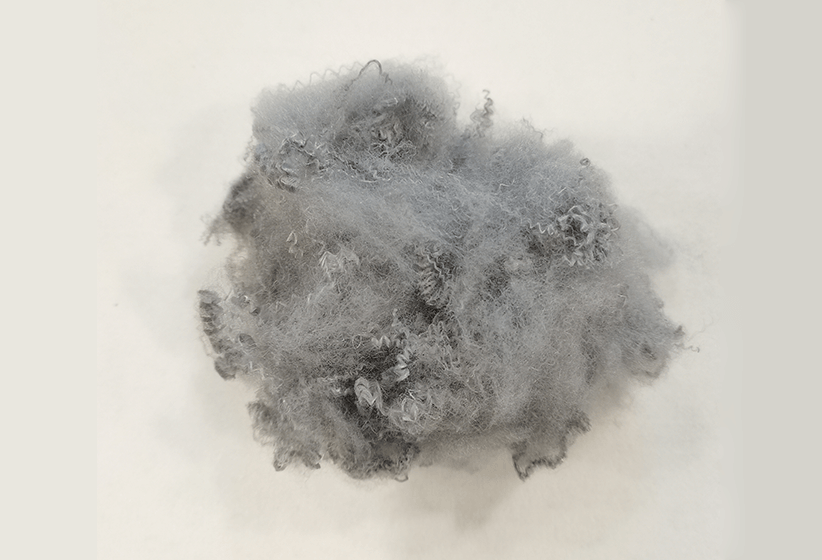

Graphene Fiber

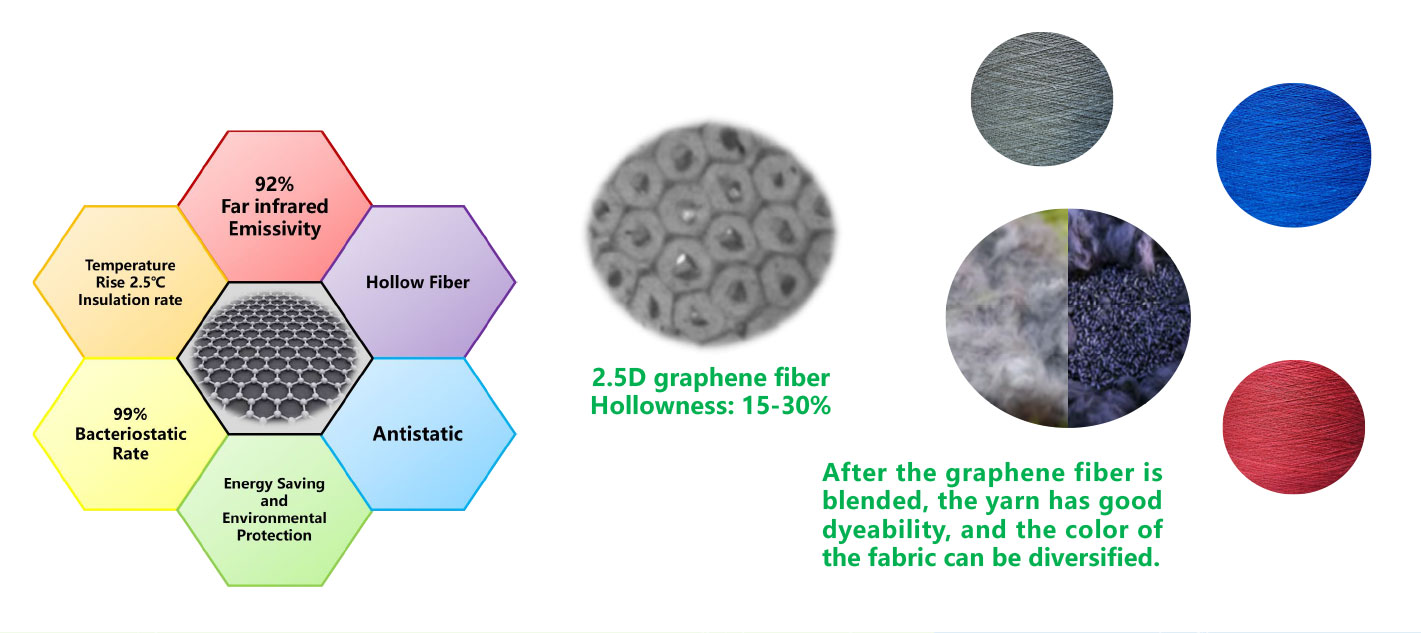

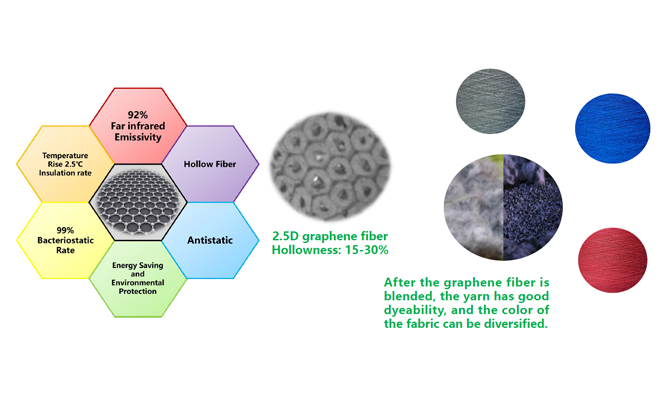

Property

The graphene functional masterbatch is added during spinning, so that the graphene is evenly dispersed in the polymer melt, and imparts heat preservation and antibacterial effects to the fiber.

Specification

Product Category Fiber Section Denier(D) Length(mm) Characteristics
PET Staple Fiber Hollow 2.5-8 25-64(Customizable)
  • Insulation
  • Antibacterial
  • Antistatic

Multifunction

Knitted Fabric Detection Effect

Test Items Test Methods Testing Requirements Test Results
Far infrared emissivity GB/T 30127-2013 ≥0.88 0.92
Far infrared radiation temperature rise(℃) ≥1.4 2.5
Bacteriostatic rate of Escherichia coli (8099)(%) GB/T 20944.3-2008 ≥70 >99
Bacteriostatic rate of Staphylococcus aureus(ATCC 6538)(%) ≥70 >99
Bacteriostatic rate of Candida albicans (ATCC10231)(%) ≥60 >99
UPF GB/T 18830-2009 - 220
UPF UV protection factor >40 >50
UVA average transmittance(%) <5 0.60
UVB average transmittance(%) - 0.44
Color fastness to soaping - discoloration GB/T 3921-2008 A(1) ≥3-4 grade 4-5
Color fastness to soapingsell ≥3 grade
  • Acetate 4-5
  • Cotton 4-5
  • Nylon 4-5
  • Polyester 4-5
  • Acrylic 4-5
  • Wool 4-5
Static voltage half-life(s)(s) GB/T 12703.1-2008 ≤15 0.2
Electrostatic voltage(V) - 408
Anti-mite performancerepellent rate(%) GB/T 24253-2009 ≥80 89.4

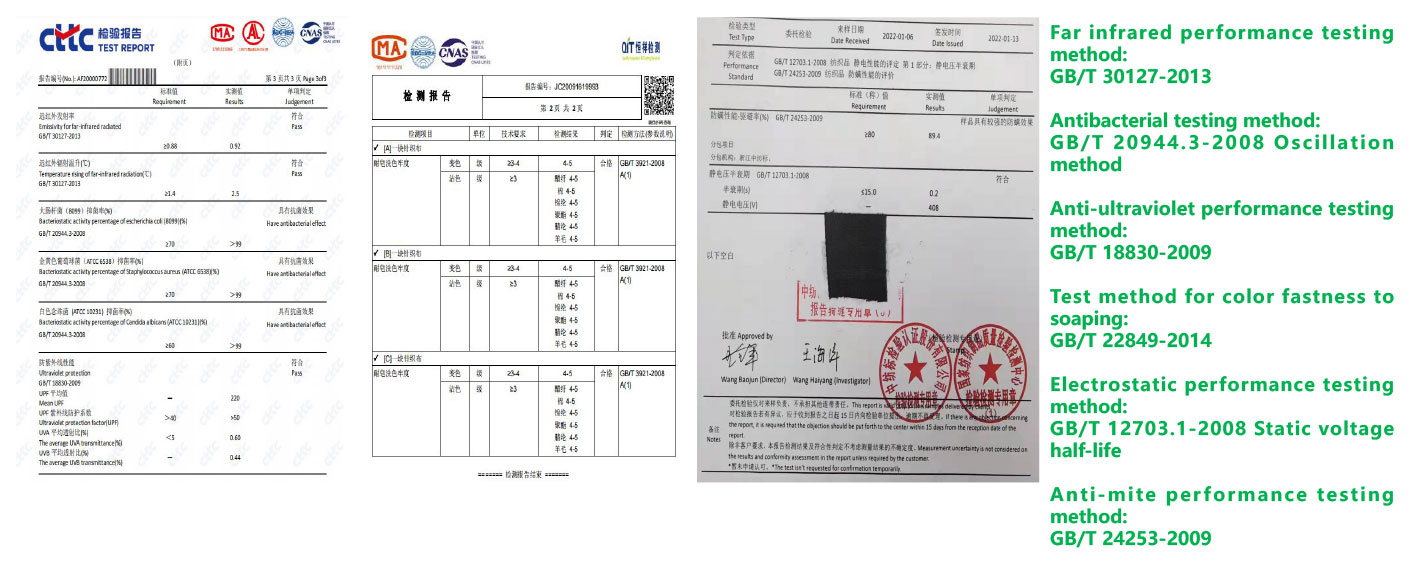

Knitted Fabric Testing Report

Applications

Product Category Fiber Section Denier(D) Applications
PET Staple Fiber Hollow 2.5 Spinning, clothing fabrics.
2-8 Industrial non-woven fabrics, other...
